參數表節選：的技術參數 GLV12-8-200/36/40b/92
| 產品闡述 | ||
|---|---|---|

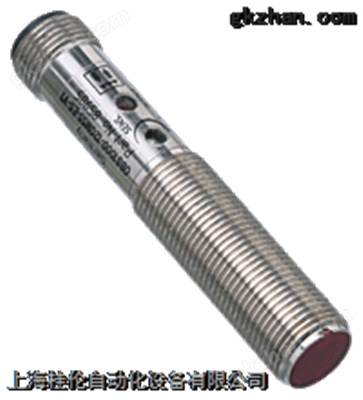

| Diffuse mode sensor, M12 threaded housing design, metal housing, front optical face, 200 mm detection range, red light, light/dark on, 1 NPN output, M12 plug | ||
| General specifications | ||
|---|---|---|
| Detection range | 0 ... 200 mm | |
| Light source | LED, 640 nm | |
| Light type | modulated visible red light | |
| Indicators/operating means | ||
| Function indicator | LED yellow: switching state | |
| Control elements | Sensing range adjuster | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC | |
| Output | ||
| Switching type | light/dark on | |
| Signal output | 1 NPN output, short-circuit protected, reverse polarity protected, open collector | |
| Approvals and certificates | ||
| Approvals | CE | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | 4-pin, M12 x 1 connector | |
| Material | ||
| Housing | brass, nickel-plated | |
| Optical face | PMMA | |
全新德國 P+F接近開關 GLV12-8-200/36/40b/92漫反射型傳感器
全新德國 P+F接近開關 GLV12-8-200/36/40b/92漫反射型傳感器
